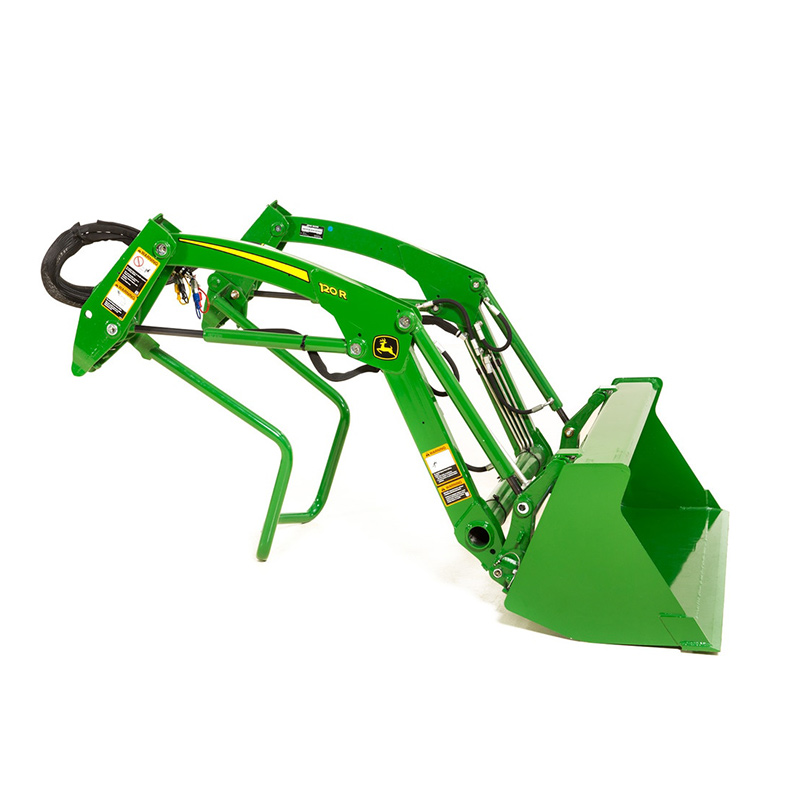

John Deere 120R Compact Tractor Loader

£5,760.00(inc. VAT)

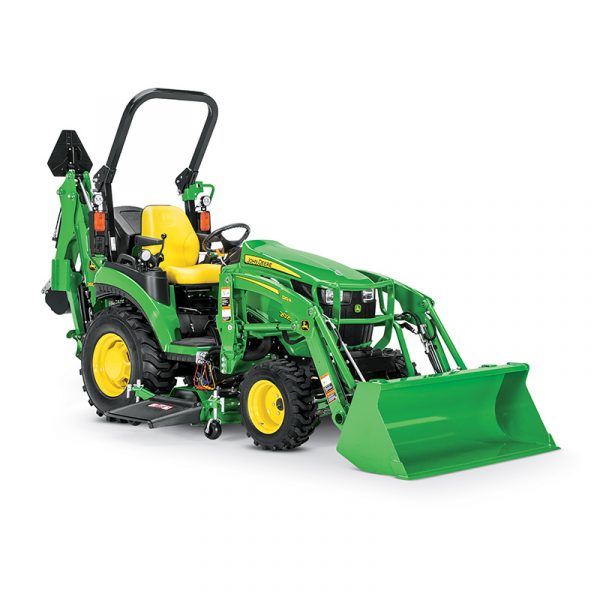

• Compatible with the 1023E, 1025R and 2025R tractors
• Quik-Park stands for easy attachment and removal
• Up to 553 lb (251 kg) lift capacity
• Mechanical Self-Leveling (MSL) Loader option with up to 726 lb (330 kg) lift capacity

1 in stock



  • Operate with ease and efficiency using the optional field-installed mechanical self-leveling (MSL) loader
  • Easily remove and mount loader to and from the tractor without tools
  • End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points


Maximum lift height (A): 1828 mm / 72 in.

Lift capacity at full height: Measured at pivot (U): 364 kg / 803 lb. Measured at 500 mm ahead of pivot (V): 251 kg / 553 lb

Boom breakout force: Measured at pivot (Y): 890 kg / 1963 lb. Measured at 500 mm ahead of pivot (Z): 606 kg / 1335 lb

Bucket rollback force capacity: At ground-level line (ZZ): 753 kg / 1659 lb

Clearance at full height – bucket dumped (C): 1304 mm / 51.3 in.

Dump angle, degrees (E): -40.5 degree (angle)

Rollback angle, degrees (G): 30.08 degree (angle)

Additional information


1026R, 2026R
